Exergy ORC-lite standard series
In addition to its customized ORC solutions, Exergy recently designed a new standard series of ORC modules in the 1.1 MWe, 1.4 MWe, 2.4 MWe and 5 MWe power sizes. The new Exergy ORC-lite series respond to increasing market needs for small size and compact ORC units with a faster time to market and lower costs to produce power on-site from various heat sources.
Exergy ORC-lite series of pre-engineered ORC modules, developed in Exergy’s R&D department, is based on Exergy’s proven technology. High efficiency is achieved thanks to Exergy’s patented turbine, which increases the resource conversion rate, thus maximizing revenue from electricity production for our clients.
ORC-LITE SERIES: FAST AND COST-EFFECTIVE ON-SITE POWER SOLUTIONS
Orc-lite features

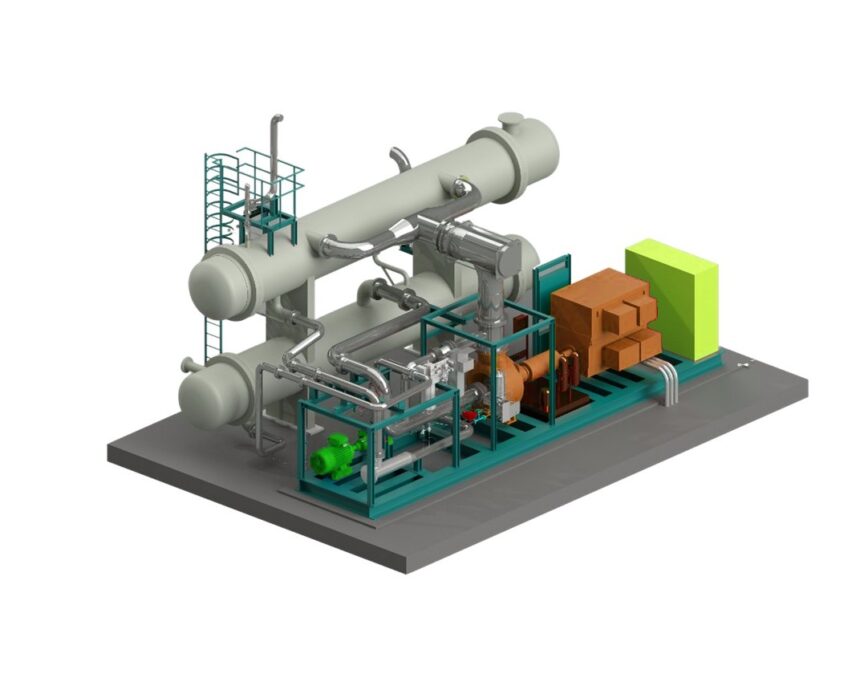

The main system equipment, including the ORC turbine, generator, lube/seal oil system, feed pump, electrical panel, is delivered already pre-assembled and tested on a compact skid-module (12 m length x 2.2 m width).
Heat exchangers, safety valve, interconnecting piping and minor components are supplied loose and fully prefabricated for easy on-site assembly.
The working fluid selected for low-temperature ORC standard modules is a refrigerant type, which ensure the advantages of excellent thermal stability, low global warming potential, no flammability and availability on the market. For high-temperature applications the fluid is a hydrocarbon, the best option to extract the maximum power from the warmer resources.
ORC-lite applications
Exergy ORC-lite standard modules are suitable for the exploitation of various heat sources at low and high temperatures ranging from 90°C to 310°C for:
An Exergy ORC-lite module is a good fit if you need:
1
SMALL POWER OUTPUT
From 1 MWe to max. 5 MWe
2
A COMPACT SOLUTION
Low environmental impact
Reduced land occupation
3
FLEXIBLE INSTALLATION
Modular configuration
Ease of integration in industrial sites and plants
4
FAST TIME TO MARKET
Faster supply compared to a tailored power plant
Easy and fast installation
5
A COST COMPETITIVE SOLUTION
Lower production and assembly costs
Lower foundation cost
6
SIMPLE OPERATION
No need of operators
Simple and fast maintenance
Low running and maintenance costs
7
A NONFLAMMABLE SOLUTION
No flammable working fluid for low temperature module
High safety
